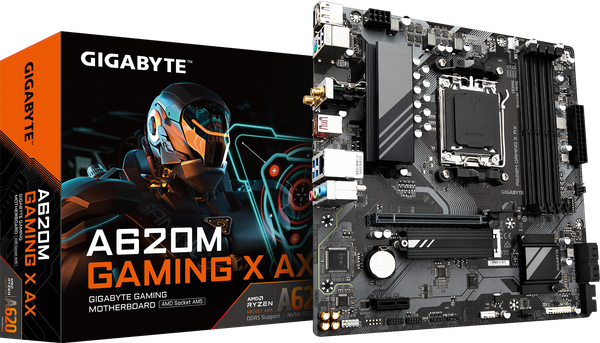

ASRock B850M Pro RS WiFi vs Gigabyte A620M GAMING X AX
Key differences
- ASRock B850M Pro RS WiFi: ethernet 2.5 Gbps vs 1 Gbps (60% higher)
- ASRock B850M Pro RS WiFi: m.2 slots 3 vs 1 (67% higher)
- ASRock B850M Pro RS WiFi: max memory speed 8,000 MT/s vs 7,600 MT/s (5% higher)
Same on both: usb4 No, wi-fi Wi-Fi 6E, socket AM5, rear usb-c 1, sata ports 4, form factor Micro-ATX, memory type DDR5, max memory 256 GB, memory slots 4, bios flashback Yes, front usb-c header 5Gb/s.
| ASRock B850M Pro RS WiFi | Gigabyte A620M GAMING X AX | |
|---|---|---|
| Released | 2025 | 2023 |
| USB4 | No | No |
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E |
| PCIe 5.0 M.2 slots | 1 | 0 |
| Socket | AM5 | AM5 |
| Chipset | B850 | A620 |
| Ethernet | 2.5 Gbps | 1 Gbps |
| M.2 slots | 3 | 1 |
| Rear USB | 1× 10Gb/s Type-C, 1× 10Gb/s Type-A, 2× 5Gb/s Type-A, 4× USB 2.0 | 1× 5Gb/s Type-C, 1× 10Gb/s Type-A, 2× 5Gb/s Type-A, 2× USB 2.0 |
| M.2 slots (detail) | 1× PCIe 5.0 x4, 2× PCIe 4.0 x4 | 1× PCIe 4.0 x4 |
| Rear USB-A | 7 | 5 |
| Rear USB-C | 1 | 1 |
| Bluetooth | 5.2 | 5.3 |
| PCIe slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| SATA ports | 4 | 4 |
| Audio | Realtek ALC897 | — |
| Fan headers | 5 | 3 |
| Form factor | Micro-ATX | Micro-ATX |
| Memory type | DDR5 | DDR5 |
| GPU slot | PCIe 5.0 | PCIe 4.0 |
| RGB headers | 3× ARGB, 1× RGB | 2× ARGB, 1× RGB |
| Internal USB headers | 1× USB-C 5Gb/s, 2× USB 5Gb/s (4 ports), 2× USB 2.0 (4 ports) | 1× 5Gb/s Type-C, 2× 5Gb/s ports, 2× USB 2.0 ports |
| Max memory | 256 GB | 256 GB |
| Memory slots | 4 | 4 |
| Thunderbolt / USB4 | — | — |
| BIOS flashback | Yes | Yes |
| Ethernet controller | Realtek RTL8125BG 2.5Gb | Realtek 1Gb |
| Video outputs | 1× HDMI 2.1, 1× DisplayPort 1.4 | 1× HDMI, 1× DisplayPort |
| Front USB-C header | 5Gb/s | 5Gb/s |
| Max memory speed | 8,000 MT/s | 7,600 MT/s |
