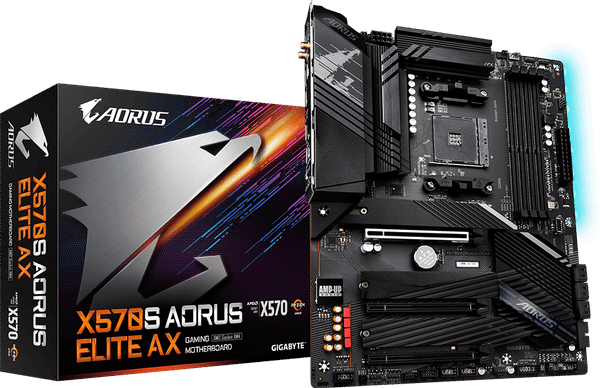

ASUS ROG STRIX B550-F GAMING WIFI II vs Gigabyte X570S AORUS ELITE AX
Key differences
- Gigabyte X570S AORUS ELITE AX: m.2 slots 3 vs 2 (33% higher)
- Gigabyte X570S AORUS ELITE AX: max memory speed 5,400 MT/s vs 5,100 MT/s (6% higher)
Same on both: usb4 No, wi-fi Wi-Fi 6E, pcie 5.0 m.2 slots 0, socket AM4, ethernet 2.5 Gbps, rear usb-c 1, bluetooth 5.2, sata ports 6, fan headers 6, form factor ATX, memory type DDR4, gpu slot PCIe 4.0, max memory 128 GB, memory slots 4, bios flashback Yes.
| ASUS ROG STRIX B550-F GAMING WIFI II | Gigabyte X570S AORUS ELITE AX | |
|---|---|---|
| Released | 2021 | 2021 |
| Power stages (VRM) | 12+2 | — |
| USB4 | No | No |
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E |
| PCIe 5.0 M.2 slots | 0 | 0 |
| Socket | AM4 | AM4 |
| Chipset | B550 | X570 |
| Ethernet | 2.5 Gbps | 2.5 Gbps |
| M.2 slots | 2 | 3 |
| Rear USB | 1× 10Gb/s Type-C, 1× 10Gb/s Type-A, 4× 5Gb/s Type-A, 2× USB 2.0 | 1× 20Gb/s Type-C, 3× 10Gb/s Type-A, 4× 5Gb/s Type-A, 4× USB 2.0 |
| M.2 slots (detail) | 1× PCIe 4.0 x4, 1× PCIe 3.0 x4 | 3× PCIe 4.0 x4 |
| Rear USB-A | 7 | 11 |
| Rear USB-C | 1 | 1 |
| Bluetooth | 5.2 | 5.2 |
| PCIe slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x4 (x16 slot), 3× PCIe 3.0 x1 | 1× PCIe 4.0 x16, 1× PCIe 4.0 x4 (x16 slot), 1× PCIe 4.0 x2 (x16 slot) |
| SATA ports | 6 | 6 |
| Audio | SupremeFX S1220A | Realtek ALC1220-VB |
| Fan headers | 6 | 6 |
| Form factor | ATX | ATX |
| Memory type | DDR4 | DDR4 |
| GPU slot | PCIe 4.0 | PCIe 4.0 |
| RGB headers | 1× ARGB, 2× RGB | 2× ARGB, 3× RGB |
| Internal USB headers | 1× USB 5Gb/s (2 ports), 2× USB 2.0 (4 ports) | 1× 10Gb/s Type-C, 4× 5Gb/s ports, 4× USB 2.0 ports |
| Max memory | 128 GB | 128 GB |
| Memory slots | 4 | 4 |
| Thunderbolt / USB4 | Thunderbolt header | Thunderbolt add-in card header |
| BIOS flashback | Yes | Yes |
| Ethernet controller | Intel I225-V 2.5Gb | Realtek 2.5Gb |
| Video outputs | 1× DisplayPort 1.2, 1× HDMI | 1× HDMI |
| Front USB-C header | — | 10Gb/s |
| Max memory speed | 5,100 MT/s | 5,400 MT/s |
