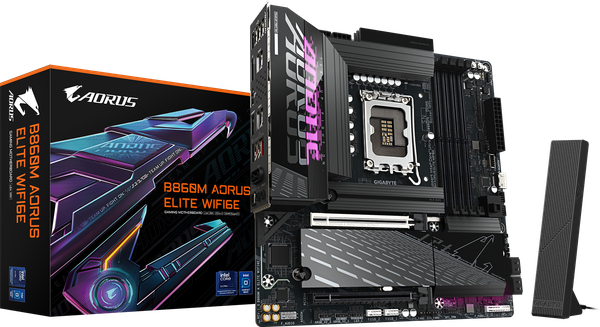

Gigabyte B860M AORUS ELITE WIFI6E vs MSI PRO B850M-A WIFI
Key differences
- MSI PRO B850M-A WIFI: ethernet 5 Gbps vs 2.5 Gbps (50% higher)
- Gigabyte B860M AORUS ELITE WIFI6E: m.2 slots 3 vs 2 (33% higher)
- Gigabyte B860M AORUS ELITE WIFI6E: max memory speed 9,200 MT/s vs 8,200 MT/s (11% higher)
Same on both: pcie 5.0 m.2 slots 1, sata ports 4, form factor Micro-ATX, memory type DDR5, gpu slot PCIe 5.0, rgb headers 3× ARGB, 1× RGB, internal usb headers 1× 10Gb/s Type-C, 2× 5Gb/s ports, 4× USB 2.0 ports, max memory 256 GB, memory slots 4, bios flashback Yes, front usb-c header 10Gb/s.
| Gigabyte B860M AORUS ELITE WIFI6E | MSI PRO B850M-A WIFI | |
|---|---|---|
| Released | 2025 | 2025 |
| USB4 | Yes | No |
| Wi-Fi | Wi-Fi 6E | Wi-Fi 7 |
| PCIe 5.0 M.2 slots | 1 | 1 |
| Socket | LGA1851 | AM5 |
| Chipset | B860 | B850 |
| Ethernet | 2.5 Gbps | 5 Gbps |
| M.2 slots | 3 | 2 |
| Rear USB | 1× 40Gb/s USB4 Type-C, 2× 10Gb/s Type-A, 4× 5Gb/s Type-A, 4× USB 2.0 | 2× 10Gb/s Type-C, 3× 10Gb/s Type-A, 3× 5Gb/s Type-A |
| M.2 slots (detail) | 1× PCIe 5.0 x4, 2× PCIe 4.0 x4 | 1× PCIe 5.0 x4, 1× PCIe 4.0 x4 |
| Rear USB-A | 10 | 6 |
| Rear USB-C | 1 | 2 |
| Bluetooth | 5.3 | 5.4 |
| PCIe slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 (x16 slot) | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 (x16 slot), 1× PCIe 3.0 x1 |
| SATA ports | 4 | 4 |
| Fan headers | 6 | 5 |
| Form factor | Micro-ATX | Micro-ATX |
| Memory type | DDR5 | DDR5 |
| GPU slot | PCIe 5.0 | PCIe 5.0 |
| RGB headers | 3× ARGB, 1× RGB | 3× ARGB, 1× RGB |
| Internal USB headers | 1× 10Gb/s Type-C, 2× 5Gb/s ports, 4× USB 2.0 ports | 1× 10Gb/s Type-C, 2× 5Gb/s ports, 4× USB 2.0 ports |
| Max memory | 256 GB | 256 GB |
| Memory slots | 4 | 4 |
| Thunderbolt / USB4 | USB4 | — |
| BIOS flashback | Yes | Yes |
| Ethernet controller | Realtek 2.5Gb | Realtek RTL8126VB 5Gb |
| Video outputs | 1× HDMI, 1× DisplayPort, 1× USB4 Type-C (DP), 1× internal front HDMI | 1× HDMI 2.1, 1× DisplayPort 1.4 |
| Front USB-C header | 10Gb/s | 10Gb/s |
| Max memory speed | 9,200 MT/s | 8,200 MT/s |
| Audio | — | Realtek ALC897 |
