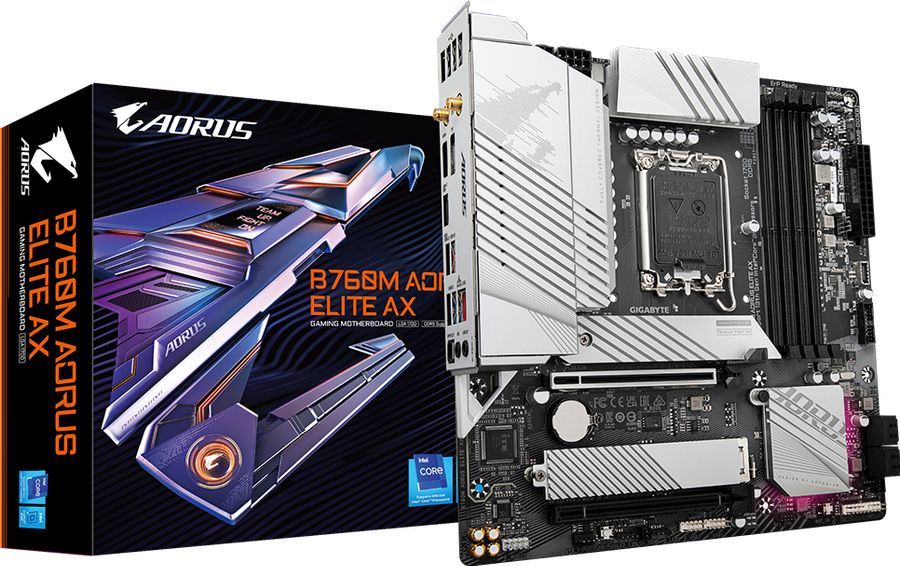

Gigabyte B760M AORUS ELITE AX
Motherboard · 2023
LGA1700B760Micro-ATXDDR5
- USB4
- No
- Wi-Fi
- Wi-Fi 6E
- PCIe 5.0 M.2 slots
- 0
- Socket
- LGA1700
- Chipset
- B760
- Ethernet
- 2.5 Gbps
- M.2 slots
- 2
- Rear USB
- 1× 20Gb/s Type-C, 1× 10Gb/s Type-A, 3× 5Gb/s Type-A, 4× USB 2.0
- M.2 slots (detail)
- 2× PCIe 4.0 x4
- Rear USB-A
- 8
- Rear USB-C
- 1
- Bluetooth
- 5.3
- PCIe slots
- 1× PCIe 4.0 x16, 1× PCIe 4.0 x4 (x16 slot)
- SATA ports
- 4
- Fan headers
- 4
- Form factor
- Micro-ATX
- Memory type
- DDR5
- GPU slot
- PCIe 4.0
- RGB headers
- 2× ARGB, 2× RGB
- Internal USB headers
- 1× 10Gb/s Type-C, 2× 5Gb/s ports, 4× USB 2.0 ports
- Max memory
- 256 GB
- Memory slots
- 4
- Thunderbolt / USB4
- Thunderbolt add-in card header
- BIOS flashback
- Yes
- Ethernet controller
- Realtek 2.5Gb
- Video outputs
- 1× HDMI, 1× DisplayPort
- Front USB-C header
- 10Gb/s
- Max memory speed
- 7,800 MT/s
Specs from the manufacturer page. Image © Gigabyte.
Processors for this LGA1700 board
13 LGA1700 processors in our catalog fit. Fastest first; older chips may need a BIOS update.
Compatible memory kits
33 DDR5 kits that fit.
- Kingston FURY Beast DDR5-6000 CL36 32GB (2x16GB)32 GB · 6,000 MT/s
- Crucial Pro OC DDR5-6400 CL40 64GB (2x32GB)64 GB · 6,400 MT/s
- TeamGroup T-CREATE EXPERT DDR5-6000 CL30 64GB (2x32GB)64 GB · 6,000 MT/s
- TeamGroup T-FORCE DELTA RGB DDR5-6000 CL30 64GB (2x32GB)64 GB · 6,000 MT/s
- TeamGroup T-FORCE DELTA RGB DDR5-7200 CL34 32GB (2x16GB)32 GB · 7,200 MT/s
- Patriot Viper Venom RGB DDR5-6000 CL30 64GB (2x32GB)64 GB · 6,000 MT/s
- Patriot Viper Venom RGB DDR5-7200 CL34 32GB (2x16GB)32 GB · 7,200 MT/s
- Crucial Pro OC DDR5-6000 CL36 32GB (2x16GB)32 GB · 6,000 MT/s
- Crucial Pro OC DDR5-6000 CL40 64GB (2x32GB)64 GB · 6,000 MT/s
